Corsair PSU TX-M Series™ TX850M — 850 Watt 80 Plus® Gold Certified Power Supply PSU

Corsair PSU TX-M Series TX750M — 750 Watt 80 Plus® Gold Certified Power Supply PSU Corsair PSU TX-M Series™ TX850M — 850 Watt 80 Plus® Gold Certified Power Supply PSU Corsair PSU VS Series VS450 — 450 Watt 80 PLUS White Certified Power Supply Unit PSU
Sold out
Sale
BND215.00
You Save: (%)

Availability: In stock

Vendor: Corsair

The CORSAIR TX-M Series™ power supplies provide industrial build quality, 80 PLUS Gold efficiency, extremely tight voltages and a semi-modular cable set.



Model

Brand
CORSAIR
Model
CP-9020130-NA
Series
TX-M Series TX850M

Details

Type
ATX12V v2.4 / EPS 2.92
Maximum Power
850W
Fans
1 x 140mm Rifle Bearing fan
Main Connector
24Pin
+12V Rails
Single
PCI-Express Connector
4 x 6+2-Pin
SATA Power Connector
8
Haswell Support
Yes
Modular
Semi-Modular
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
100 - 240 V
Input Frequency Range
47 - 63 Hz
Input Current
12 - 6 A
Output
+3.3V@25A, +5V@25A, +12V@70.8A, -12V@0.8A, +5VSB@3A
MTBF
100,000 hours
Approvals
FCC, ICES, CE, UL, cUL, RCM, TÜV, CB, CCC, BSMI, EAC, RoHS, WEEE, KC
Dimensions
3.39" x 6.30" x 5.91"
Max PSU Length
160 mm
Weight
3.92 lbs.

Features

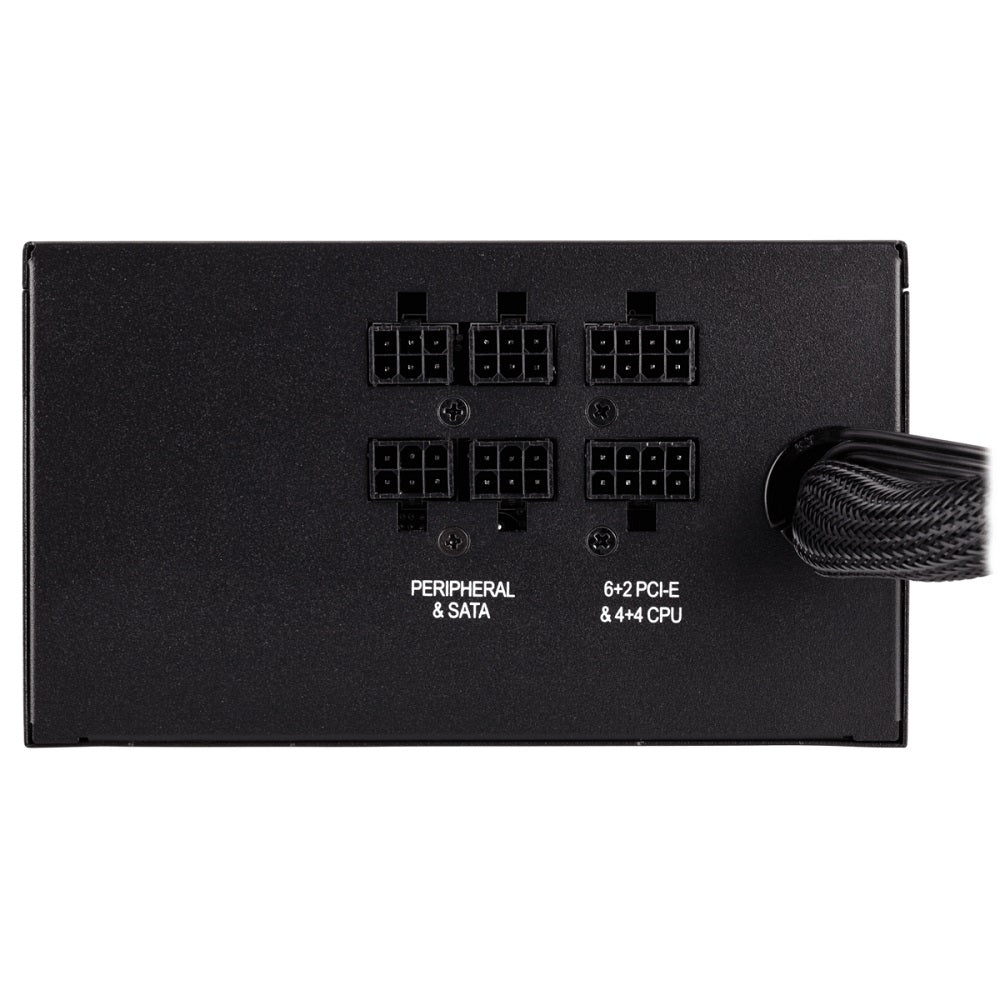

Connectors
1 x 24-pin ATX
1 x EPS12V/ATX12V (4+4)
4 x PCIe 8 Pin (6+2)
8 x SATA
8 x Peripheral
2 x Floppy adapter
Features
50 degree C Operating Temperature: Can output full power even at very high ambient temperatures

80 Plus Gold: Runs cooler and uses less power than less efficient power supplies

Semi-Modular: Allows user to only use the cables they need for a cleaner looking build with better airflow

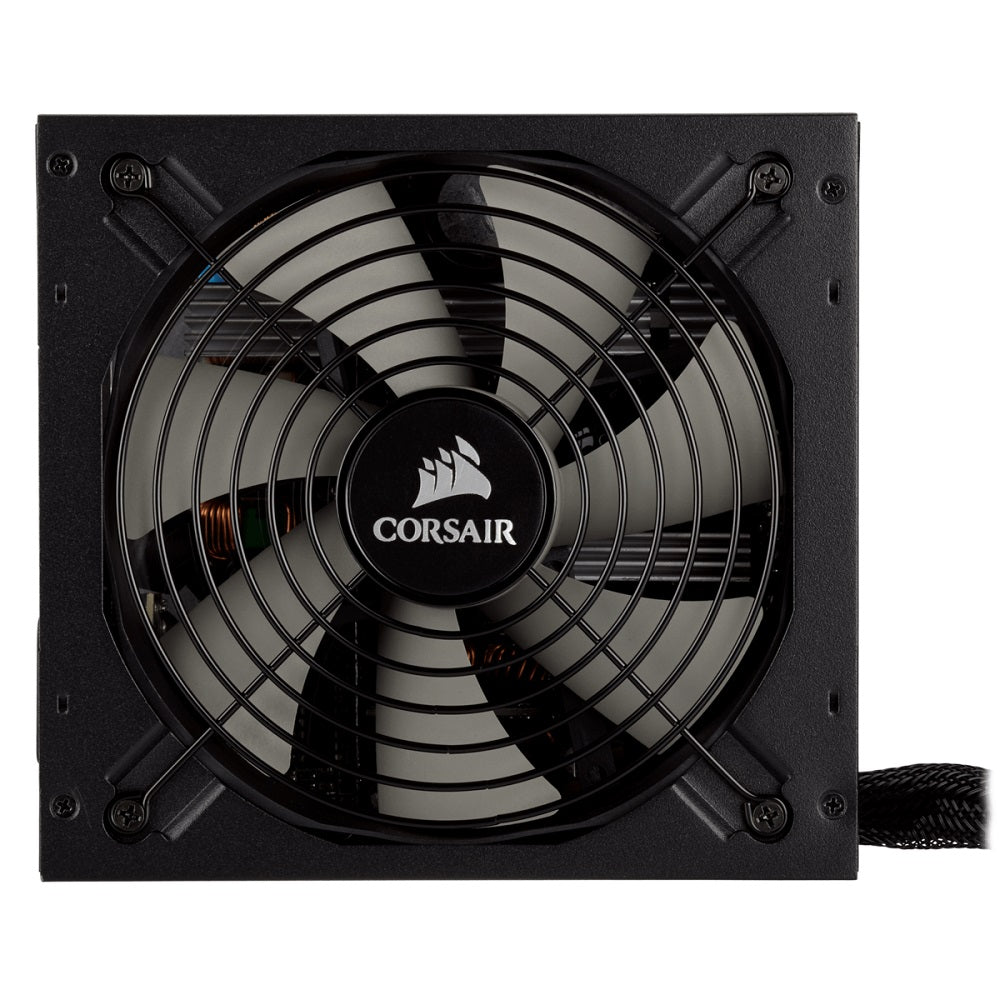

120mm Rifle Bearing Fan: Quieter than ball bearing but longer life than sleeve bearing

All Japanese Capacitors: Unparalleled reliability, even at higher operating temperatures

Over-voltage protection, under-voltage protection, short circuit protection, over power protection, and over temperature protection provide maximum safety to your critical system components
Package Content
TXM Series ATX Power Supply
Power cord

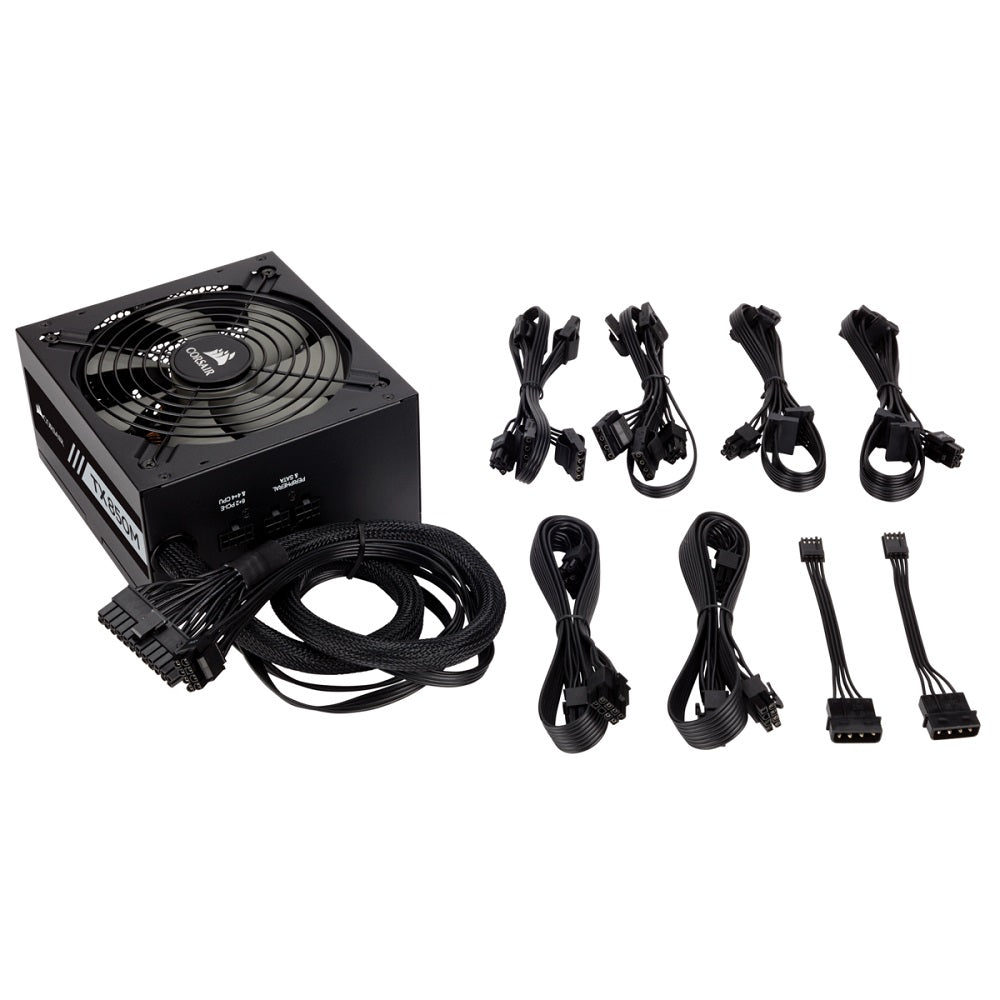

Modular cables
100mm floppy adapter
Mounting screws
Cable ties
Corsair case badge
User manual
