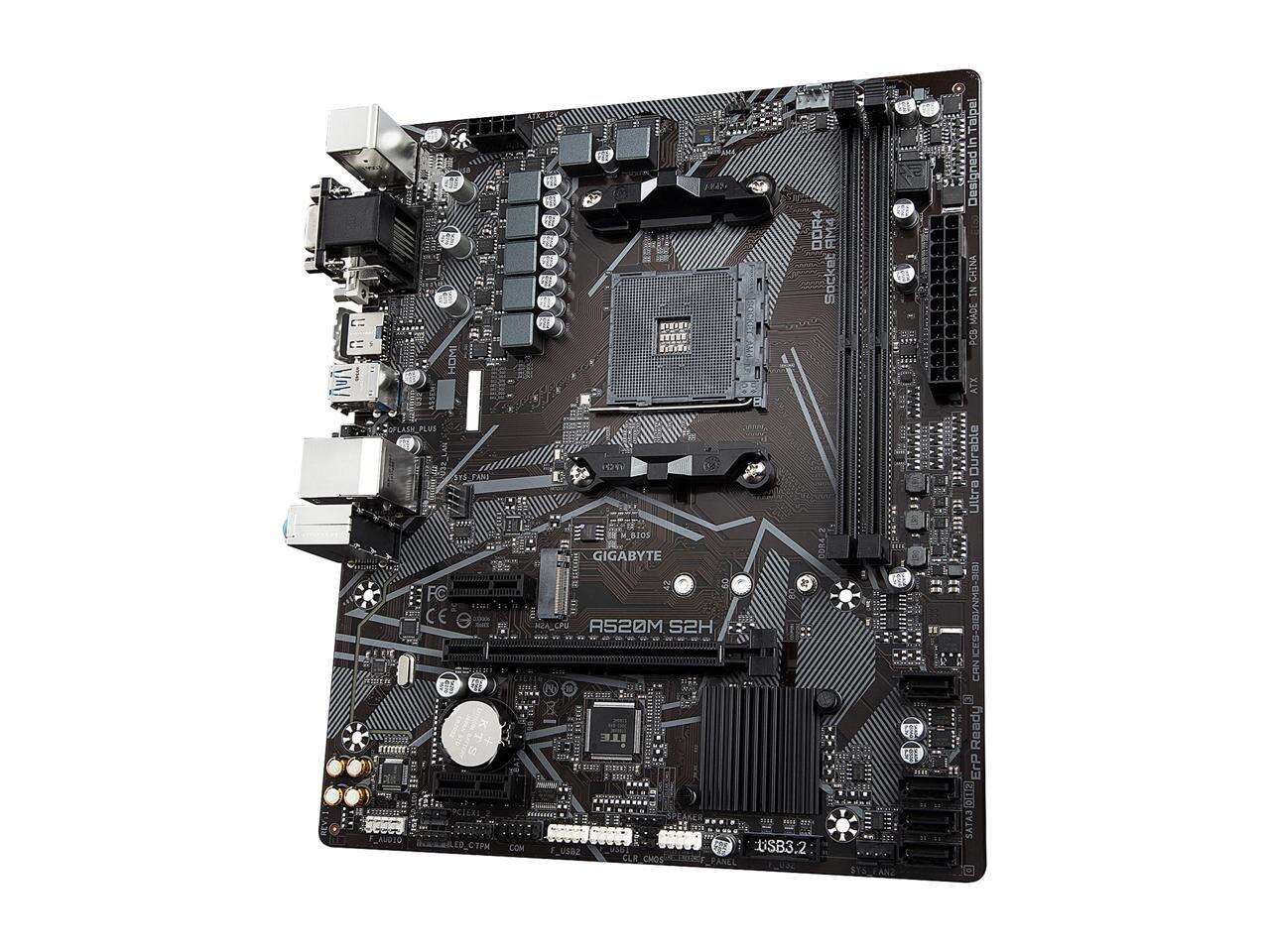

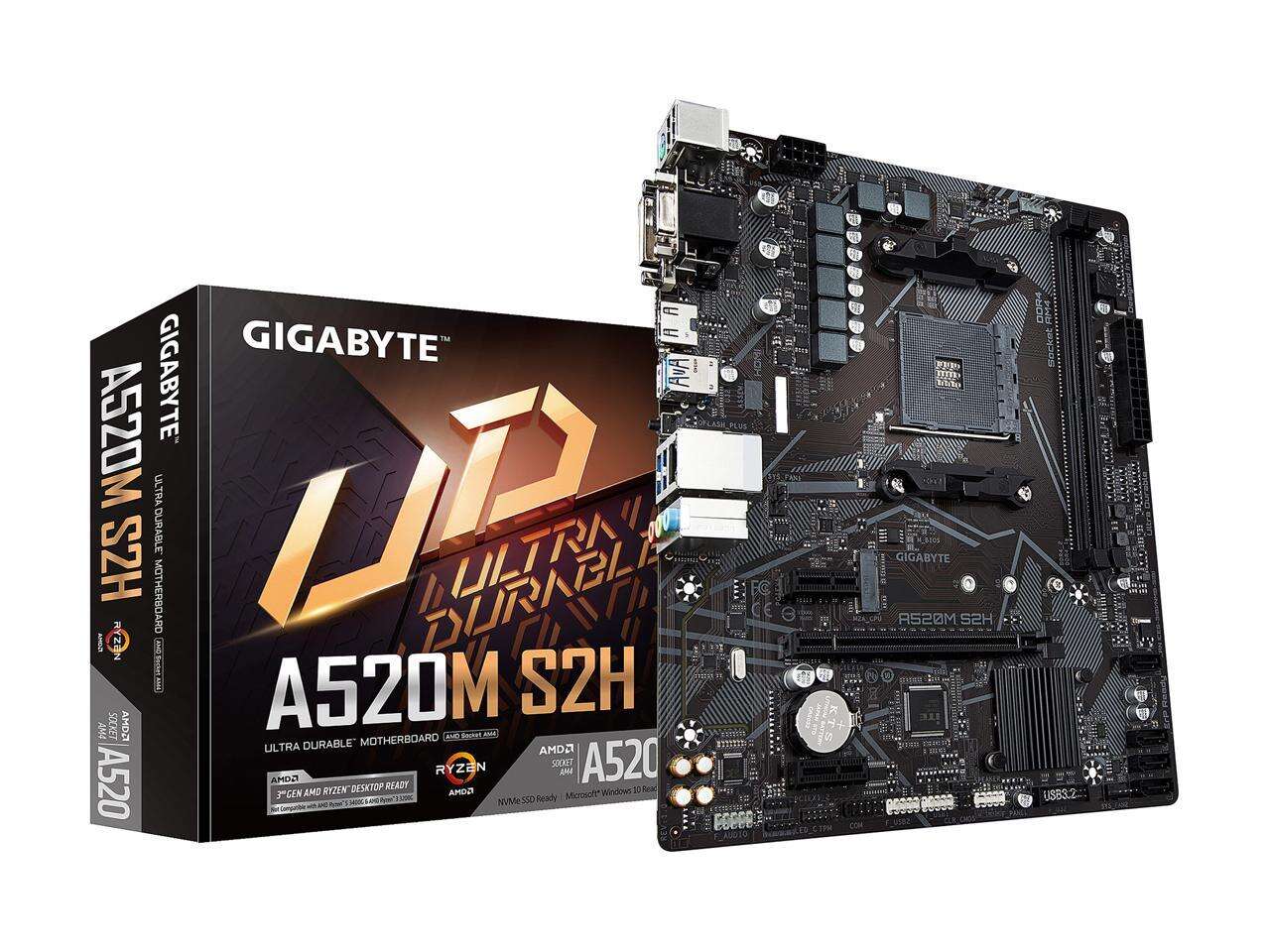

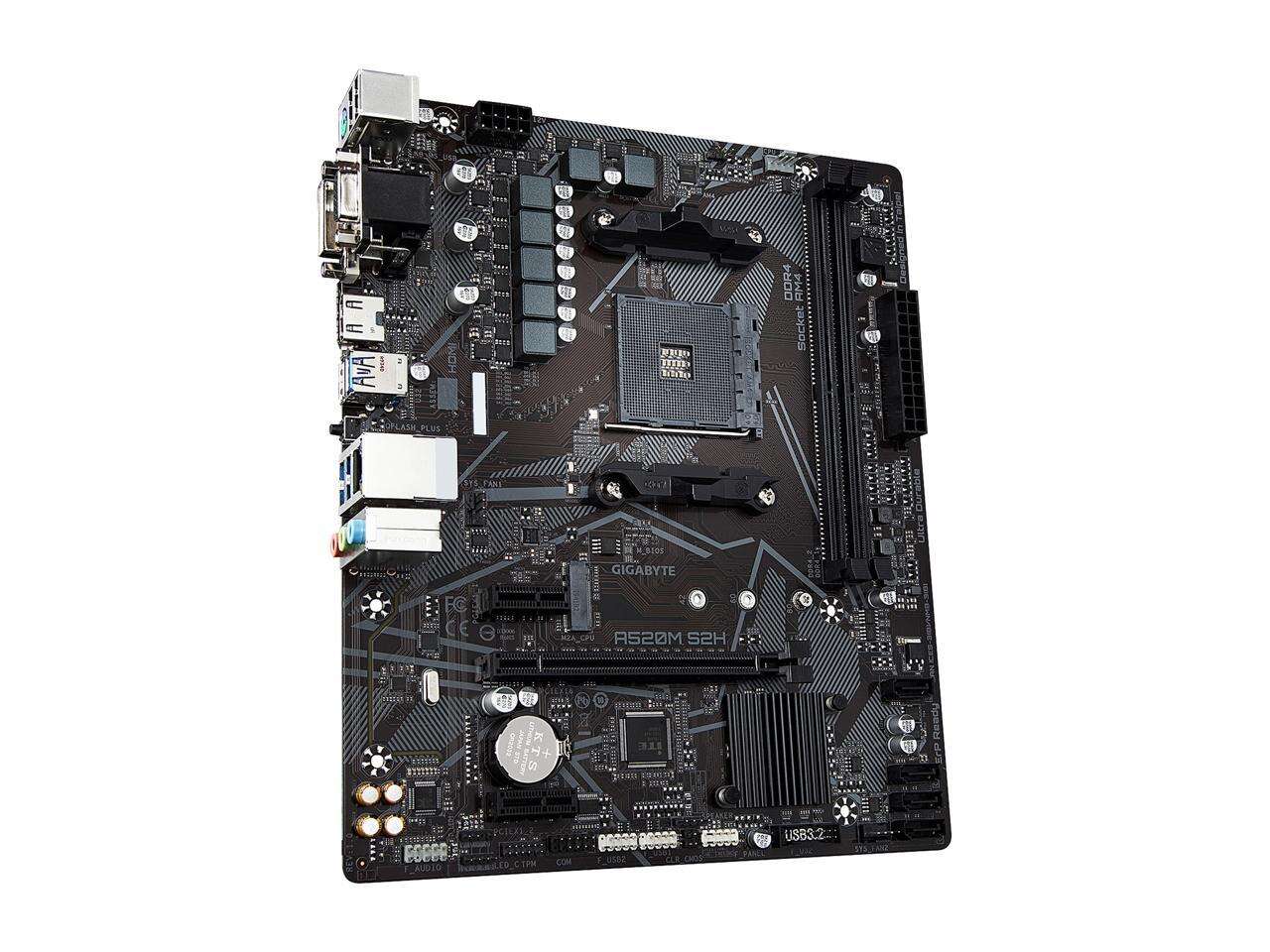

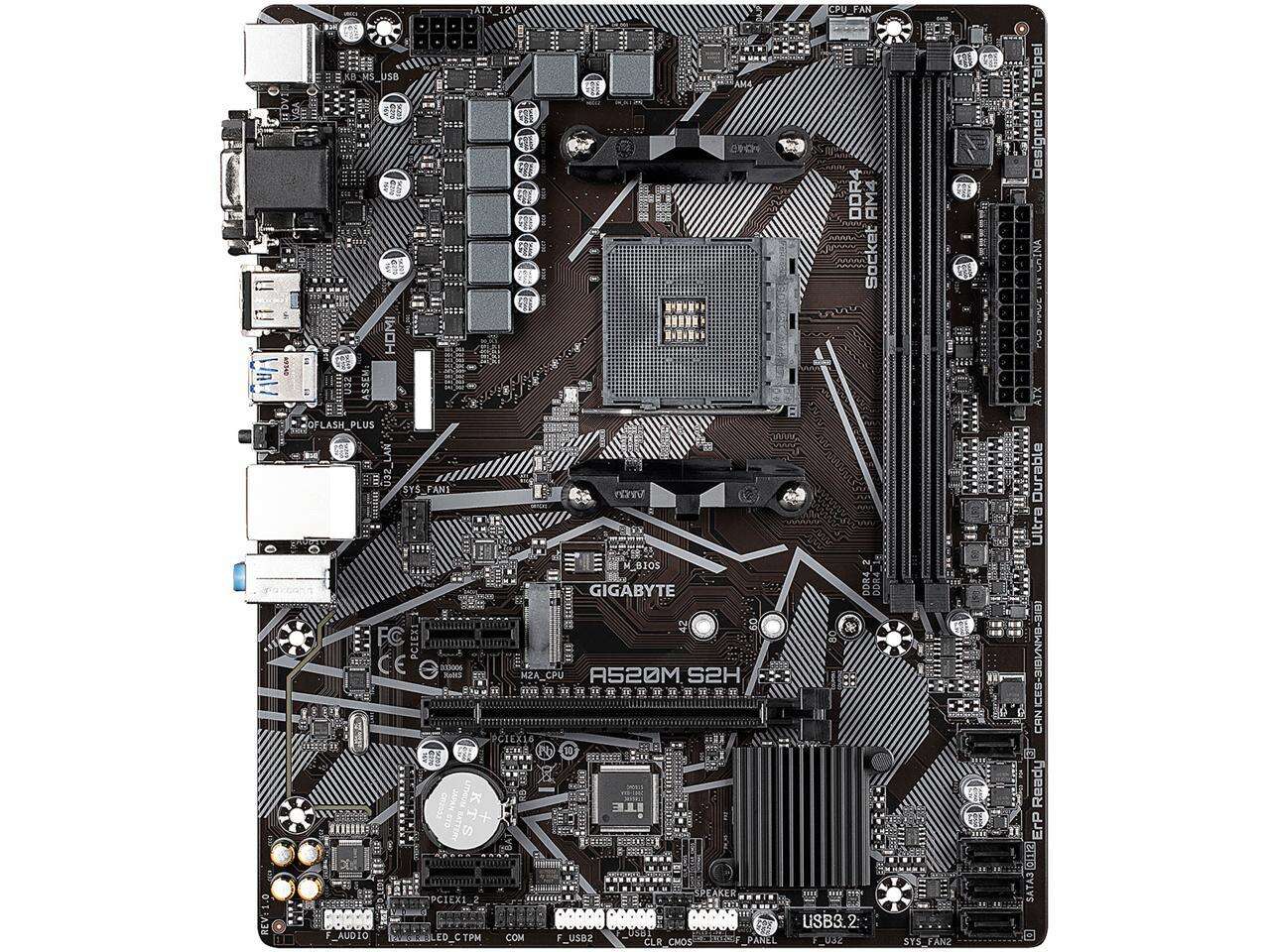

Name: GIGABYTE A520M S2H mATX AM4 4+3 Phases Digital PWM, GIGABYTE Gaming GbE LAN, NVMe PCIe 3.0 x4 M.2, 3 Display Interfaces, Q-Flash Plus, RGB Fusion 2.0, Motherboard
Brand: Gigabyte
Price: 115.0 BND
Availability: OutOfStock

Sold out

GIGABYTE A520M S2H mATX AM4 4+3 Phases Digital PWM, GIGABYTE Gaming GbE LAN, NVMe PCIe 3.0 x4 M.2, 3 Display Interfaces, Q-Flash Plus, RGB Fusion 2.0, Motherboard

BND115.00

Inform me when the item arrives

Ask about this product

Model
Brand	GIGABYTE
Model	A520M S2H

Supported CPU
CPU Socket Type	AM4
CPU Type	AMD Socket AM4, support for: AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.

Chipsets
Chipset	AMD A520

Memory
Number of Memory Slots	2×288pin
Memory Standard	3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time Maximum shared memory of 16GB

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	10/100/1000Mbps

Rear Panel Ports

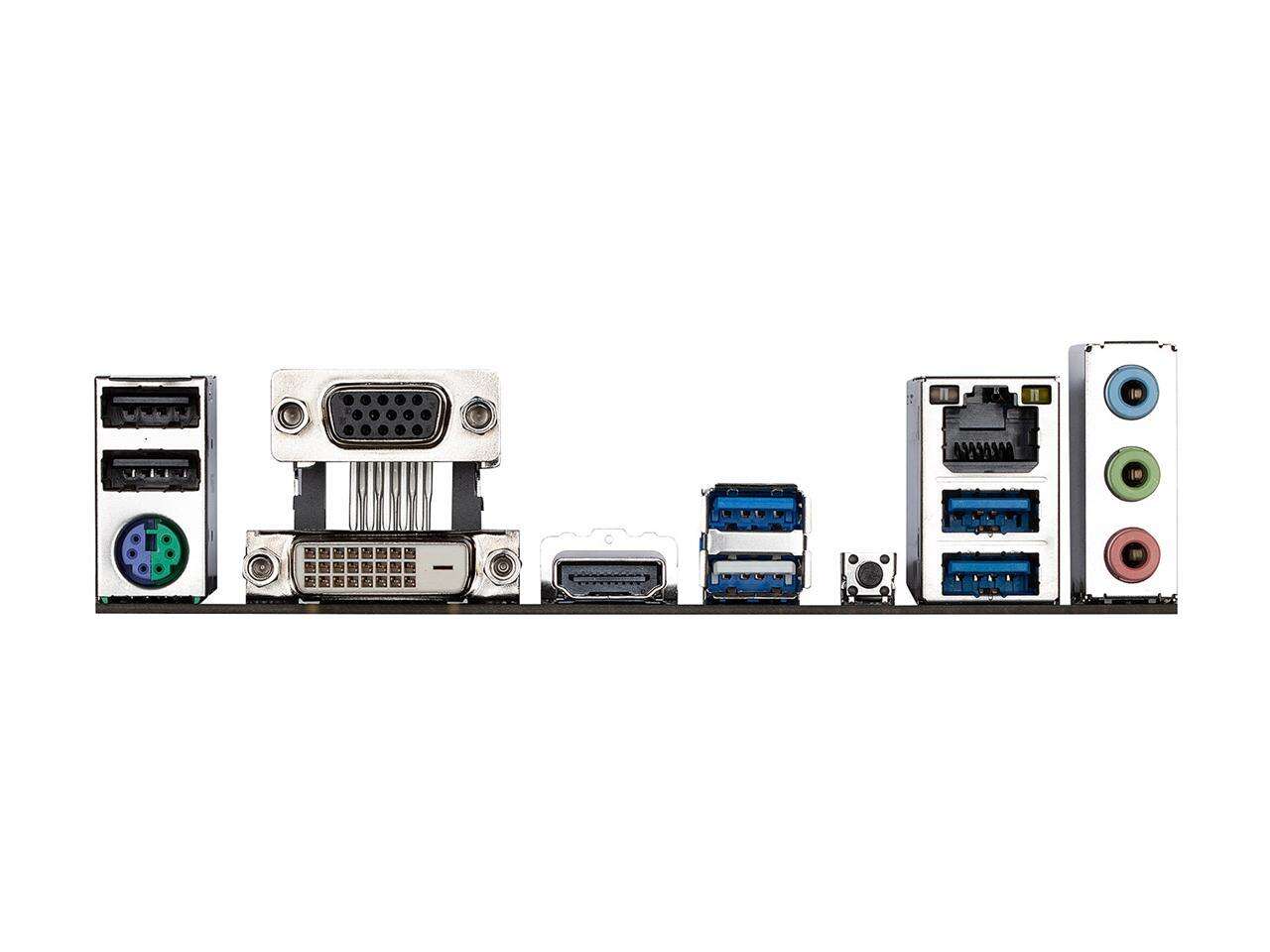

Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x Q-Flash Plus button 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 8.1"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install. BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility Operating System: Support for Windows 10 64-bit
