The GeForce RTX™ 2060 is powered by the NVIDIA Turing™ architecture, delivering incredible performance on today’s latest games. Get Game Ready with RTX.
Specifications
|
Memory Amount |
6G |
Memory Interface |
192bit |
DRAM Type |
GDDR6 |
Graphics Clock |
1365 MHz |
Boost Clock |
1830 MHz |
Memory Clock |
14 Gbps |
RTX-OPS |
39 T |
CUDA Cores |
1920 |
Memory Bandwidth (GB/sec) |
336 |
Microsoft DirectX |
12 API with feature level 12_1 |
OpenGL |
4/5 |
Bus Support |
PCI-E 3.0 x 16 |

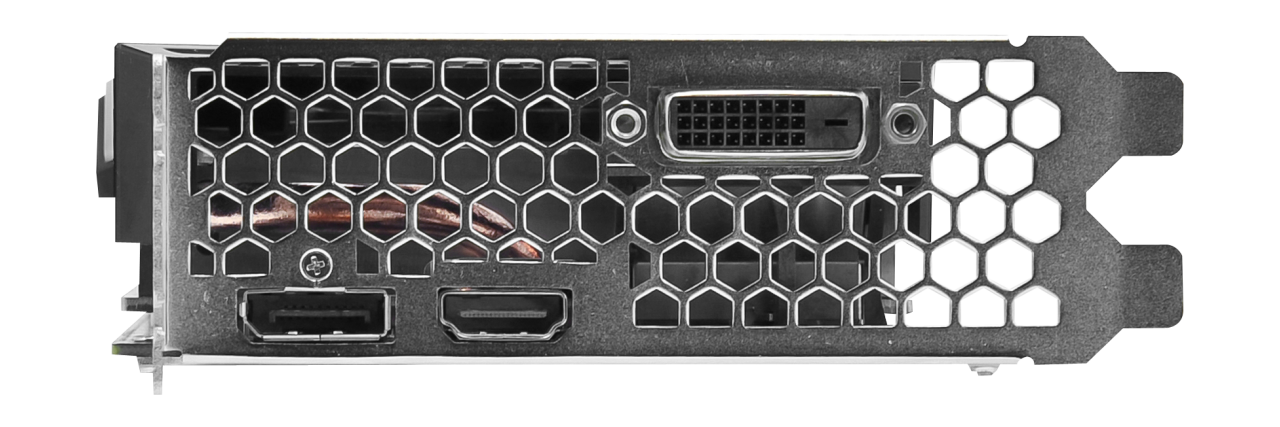

DVI |
Dual-Link DVI-D |
HDMI |
HDMI 2.0b |
DisplayPort |
DP1.4a x 1 |
Maximum Digital Resolution |
7680x4320@60Hz |
Height |
2 Slot |
Board Size |
235 x 112 x 40 mm |
Graphics Card Power |
190 W |
Recommended System Power |
500 W |

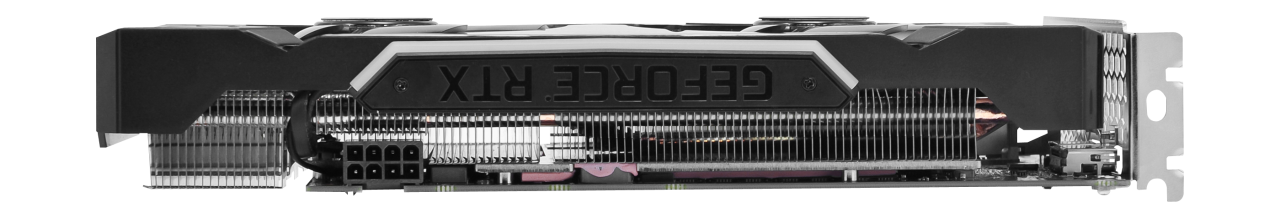

Supplementary Power Connectors |
8-pin x 1 |
Accessory |
Manual |
|
